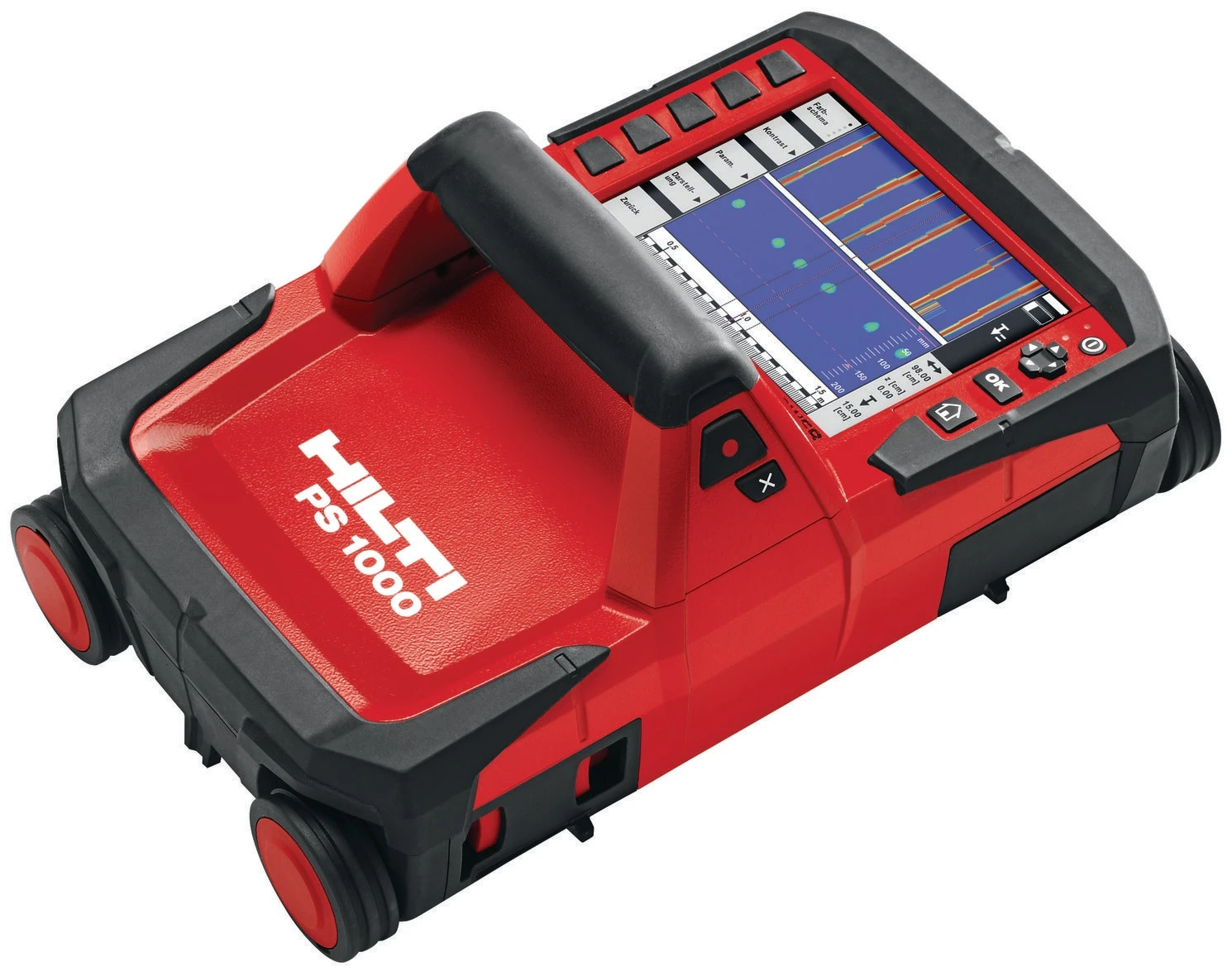

PS 1000 X-Scan Concrete Scanner

Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation

Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan

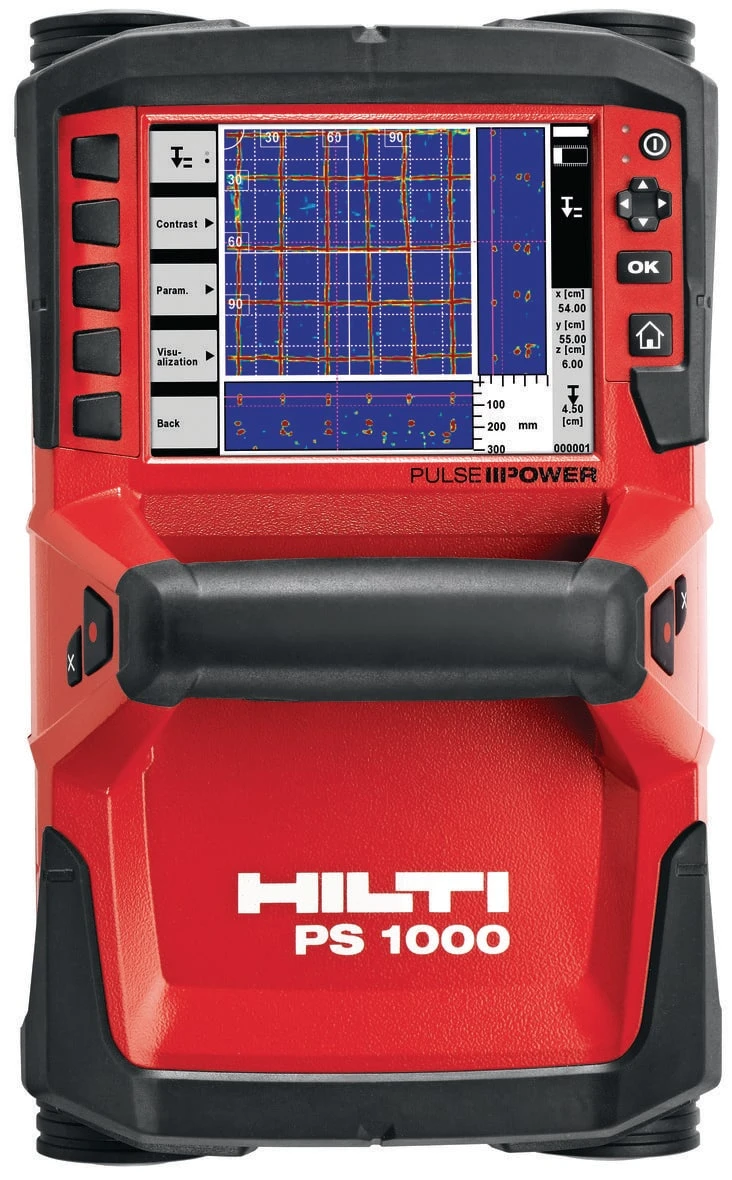

Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification

Compact all-in-one design offers easy operation, plus unmatched data visualization means hundreds of square meters of concrete can be inspected in a day

Powerful monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation

Locating rebars, tendons, metal and plastic conduits, glass-fiber cables, voids and wood in dry concrete structures at depths of up to 300 mm

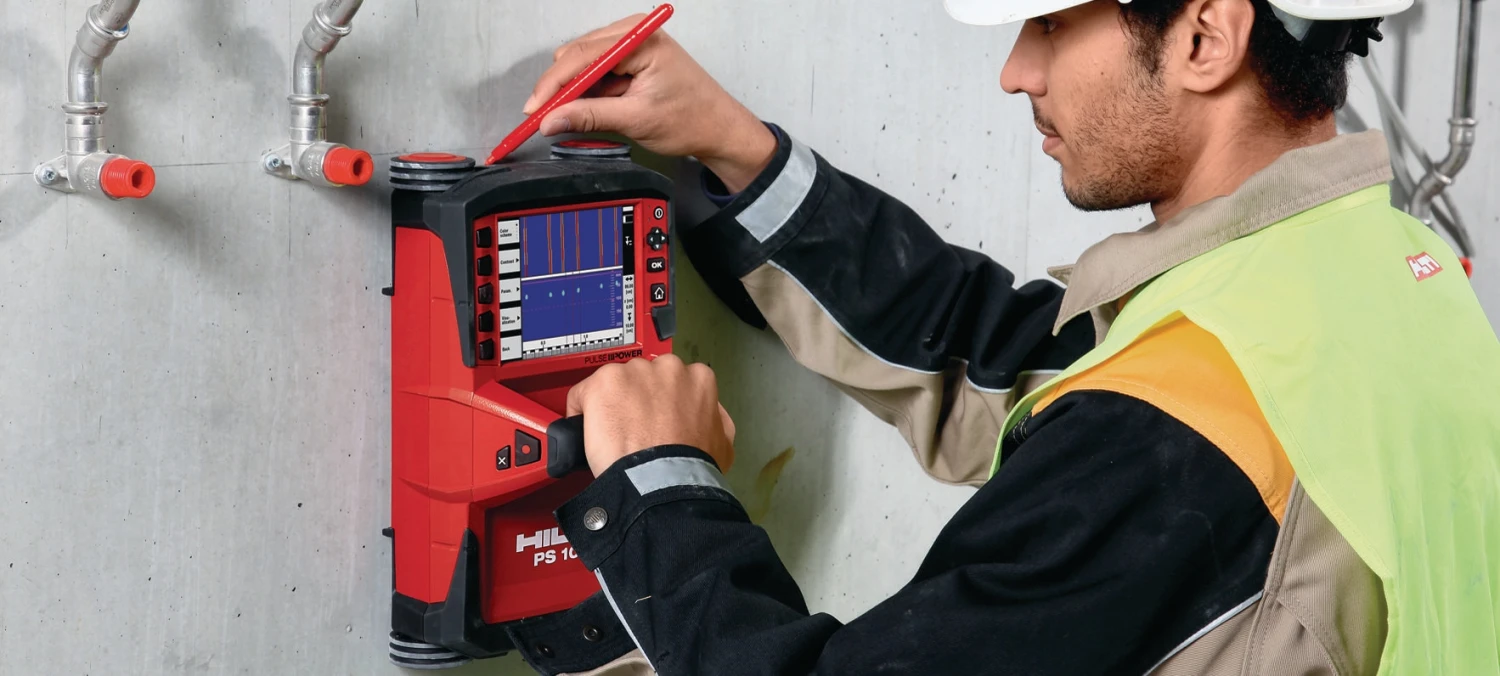

Minimizing hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work

Rebar extension (post-installed rebar connections) in structural applications

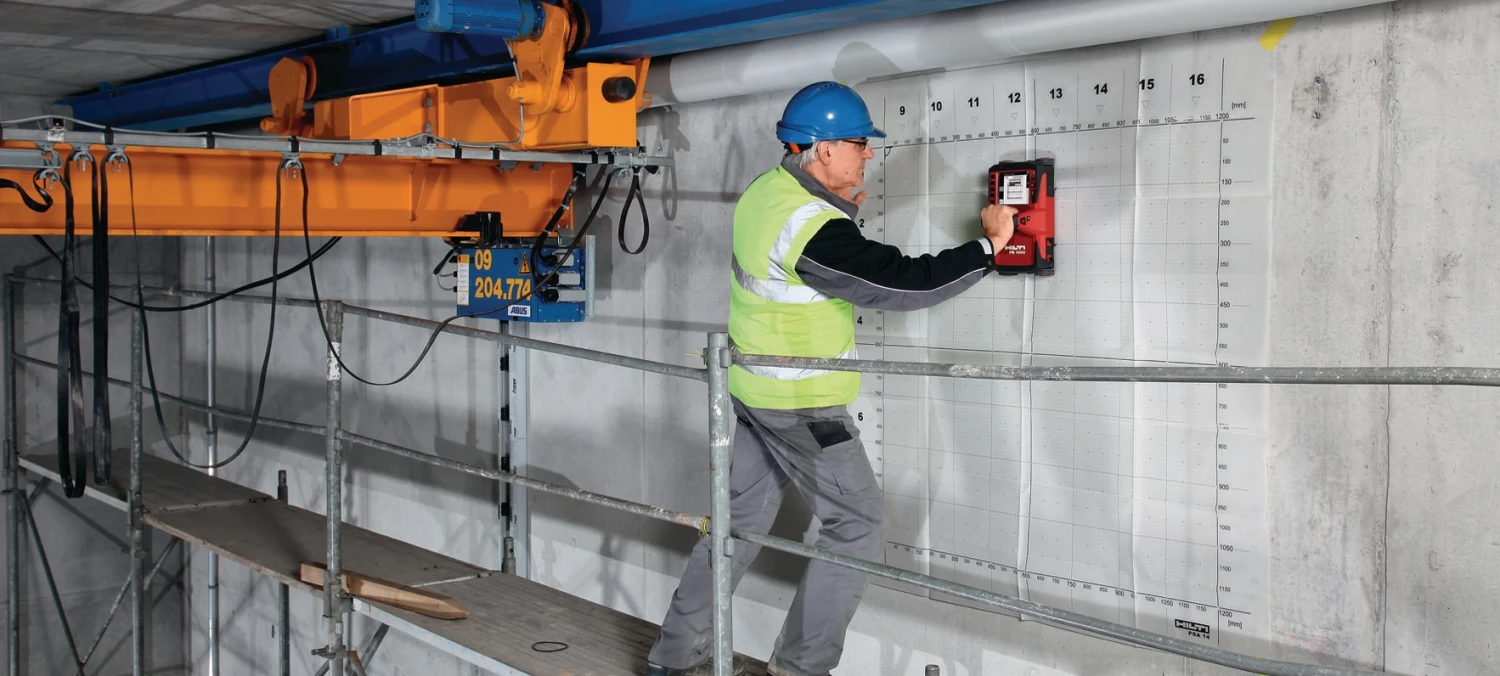

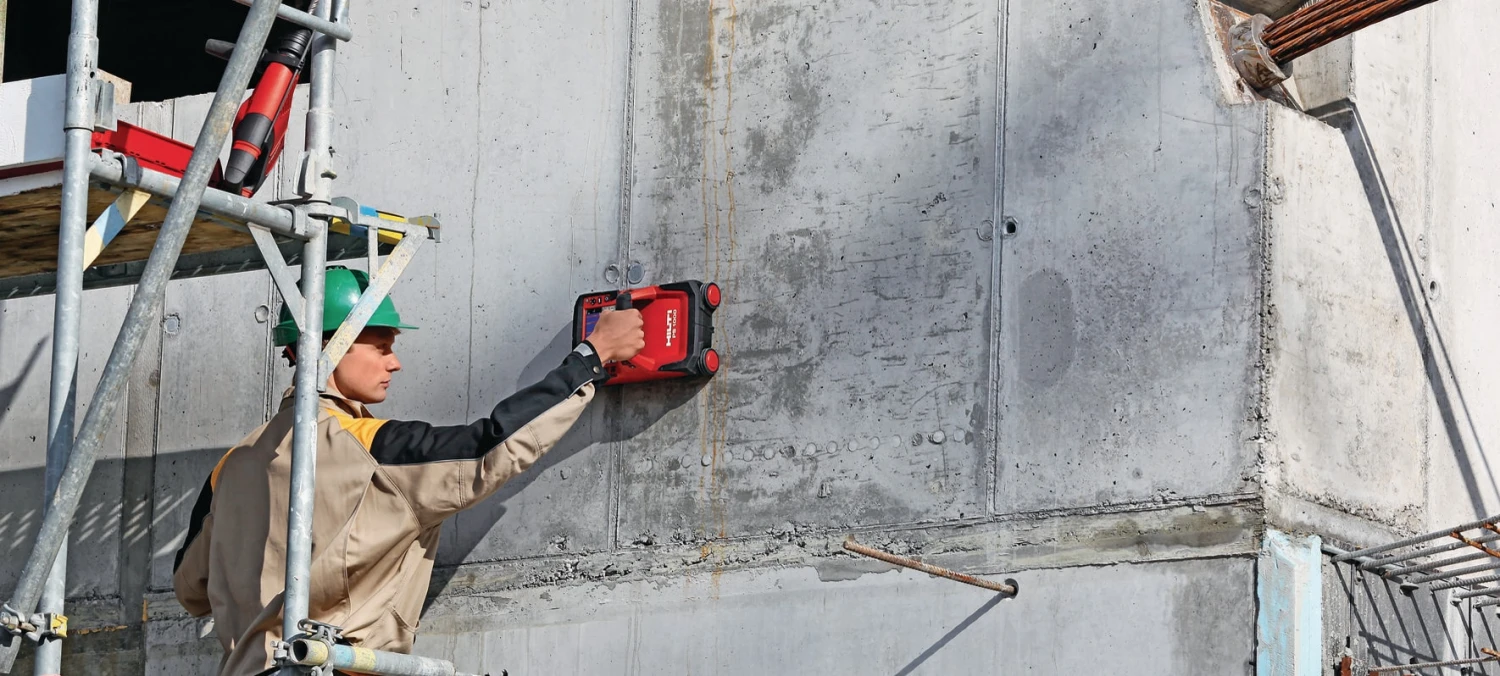

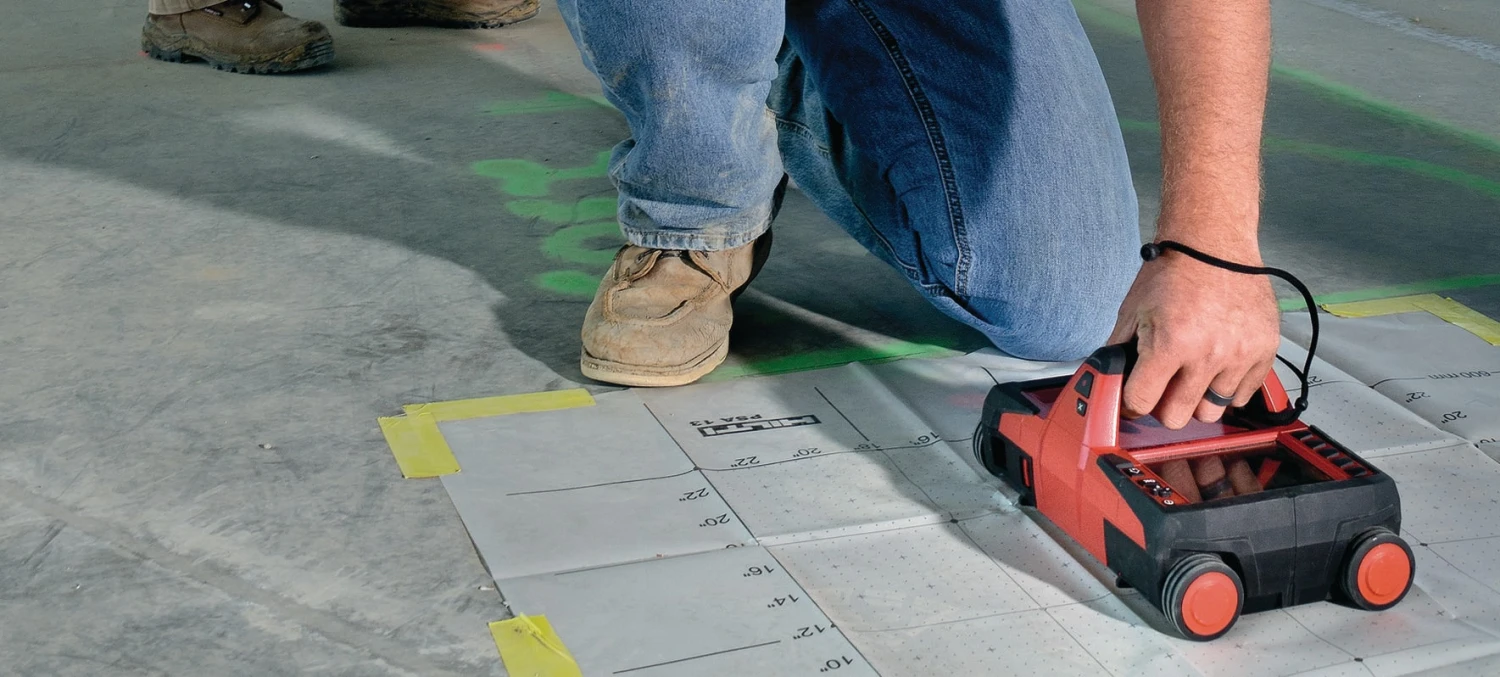

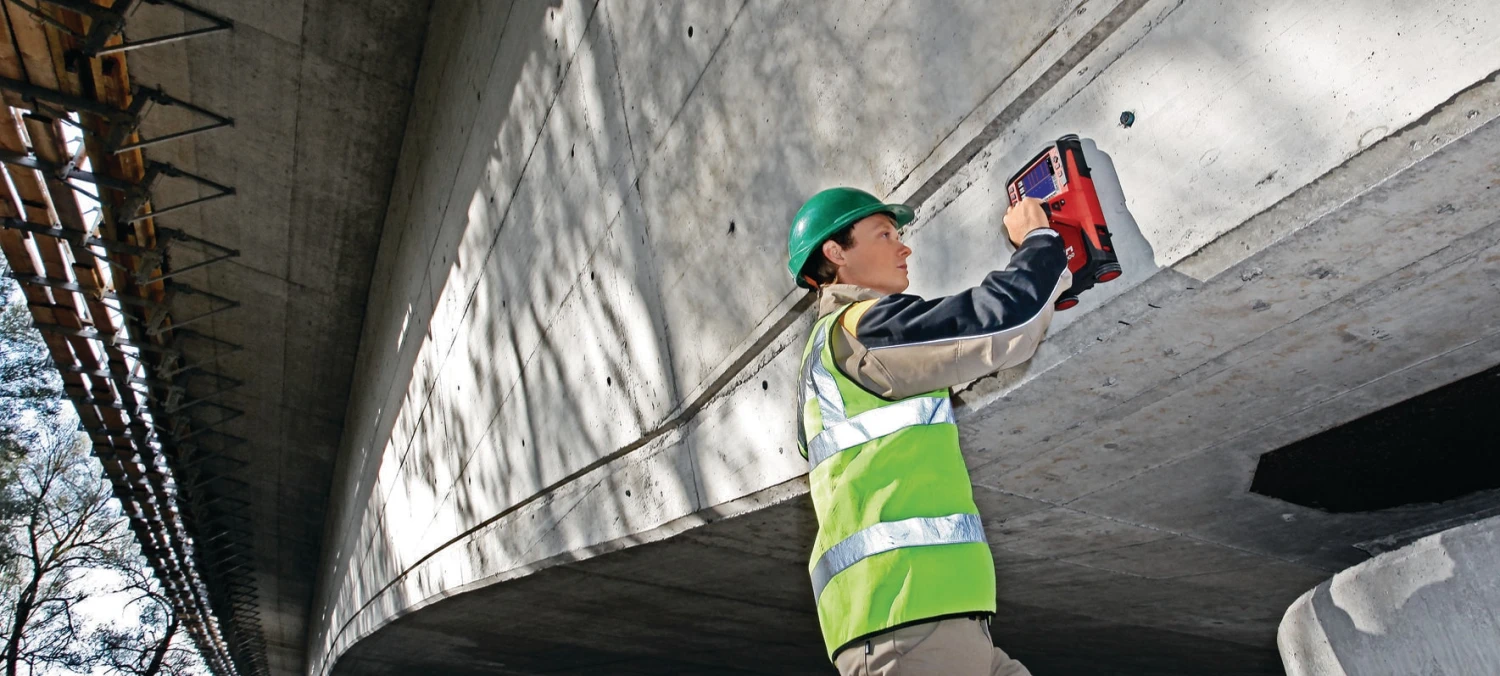

Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings

Detection of voids and cavities
